Portable Ultrasonic Flow Meter

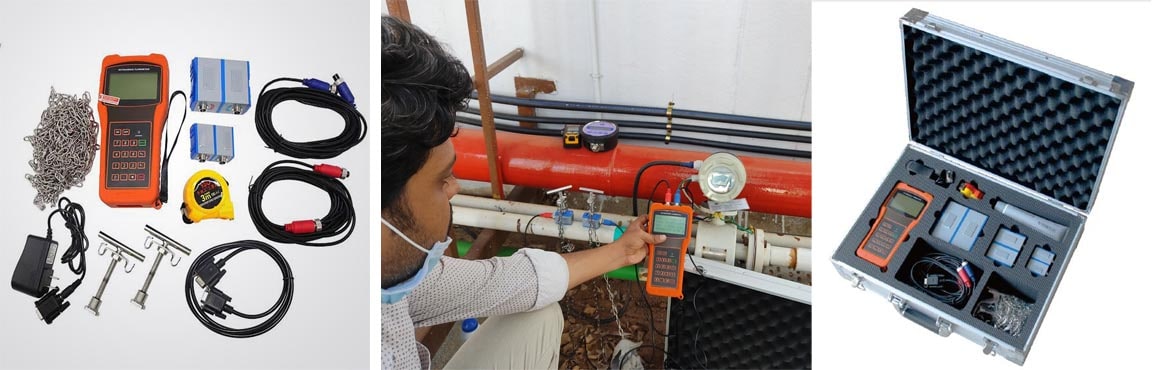

TUF-2000H Hand Held Ultrasonic Flow Meter
TUF2000H hand held ultrasonic flow meter is a battery power ultrasonic flow meter, the capability of a full size flow meter. it is carefully designed for portability and easy for use. Wide flow measurement range, from 0 m/s to 32 m/s
Product Details
Specification
- Item : ultrasonic flow meter TUF2000H
- Flow Range: ±32m/s
- Measuring Pipe Size: DN50-700mm (in this listing is for DN50-700mm. If you choose other transducer, it can be from DN15-6000mm)
- Accuracy : ±1% of reading
- Linearity: 0.5%
- Repeatability:0.2%
- Transducers: Model TM-1 for standard, other models for optional
- Transducer Cable: Standard 5m x2 or can be extended to 10m x2
- Power Supply: 3 AAA built-in Ni-MH batteries (for over 12 hours of operation). 100V-240VAC adapter
- Size: 200×93×33mm
- Handset Weight: 400g with batteries
- TS-2 type: DN15-100mm， -30-90℃
- TM-1 type: DN50-700mm， -30-90℃
- TL-1 type: DN300-6000mm， -30-90℃
- HTS-2 type: DN15-100mm， -30-160℃
- HTM-1 type: DN50-700mm， -30-160℃
- HTL-1 type: DN300-6000mm， -30-160℃
