Validation Port (Feedthru)

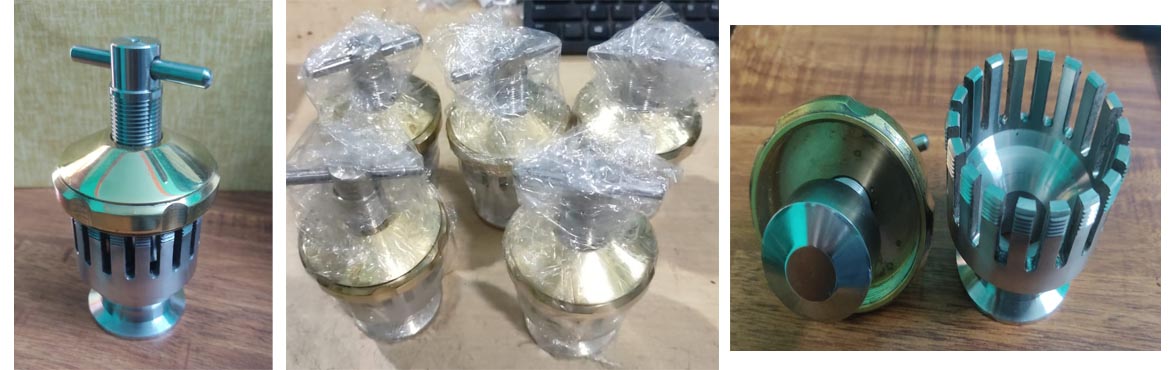

RTD / Thermocouple Validation Port ( Feedthru )

Feedthru (Validation Port) fittings provide an easy way to connect the autoclave, terminal sterilizer and steam sterilizer port. NCS Feedthru (Validation Port) are developed from stainless steel (SS316) and it help up to 18 RTD / Thermocouple sensor to connect, using Y-adapter or T-adaptor to provide capacity for more RTD / Thermocouple. Silicone rubber seals are suitable for pressure and vacuum service.

Product Details

Features:

• Capacity up to 18 RTD/ Thermocouple Sensor
• 1.5” Validation Port including sealing gasket
• Pressure up to -1 to 3 bar
• Temperature up to 150°C
• Easy to Install and fitted with easy mechanism
• No Leakage
• Optional: Y-adapter or T-adaptor, Clamp, Gasket
